How to Install a 360° Car Camera: Step-by-Step Guide for Beginners

How is it Different from a Reverse Camera?

For drivers in India, where parking spaces are often limited and roads are crowded, a 360 parking camera installation can significantly improve safety and convenience.

---

Benefits of Installing a 360° Car Camera

A high-quality 360-degree camera system offers far more than just an improved parking experience. It enhances your overall driving safety while protecting your vehicle from avoidable damage.

Easier Parking

One of the biggest advantages is stress-free parking. The bird's-eye view helps you:

• Park perfectly between lines
• Avoid curbs
• Prevent bumper scratches
• Navigate narrow parking spaces

Whether you're parallel parking or entering a basement parking lot, you'll have complete visibility around your vehicle.

---

Eliminates Blind Spots

Traditional mirrors cannot show every angle around a vehicle. Side blind spots are especially dangerous in traffic.

A properly installed 360° camera system greatly reduces these blind spots by displaying areas that mirrors cannot cover.

---

Better Night Driving

Many modern camera kits feature:

• Wide Dynamic Range (WDR)
• Low-light enhancement
• HDR processing
• Infrared support (premium models)

These features improve visibility during nighttime parking and driving in poorly lit areas.

---

Prevents Minor Accidents

Small accidents often happen during slow-speed maneuvers.

Examples include:

• Scraping walls
• Hitting pillars
• Touching another parked car
• Damaging alloy wheels on curbs

A bird's-eye camera system helps you identify these hazards before contact occurs.

---

Increased Driver Confidence

New drivers often struggle with:

• Tight parking
• Reversing
• Judging distances

A 360 car camera setup makes these tasks much easier, boosting confidence behind the wheel.

---

Better Family Safety

Children and pets can sometimes be difficult to see near a vehicle.

A 360° camera provides additional visibility around the entire vehicle, making it easier to notice nearby obstacles before moving.

---

Tools Required Before Installation

Before starting your DIY 360 car camera installation, gather all the required tools. Having everything ready will make the process smoother and help avoid unnecessary interruptions.

Safety Tip

Disconnect the negative battery terminal before working on your vehicle's electrical system. This reduces the risk of accidental short circuits and protects sensitive electronics.

---

Parts Included in a Typical 360° Camera Kit

Most aftermarket 360 camera installation kits include the following components.

Front Camera

Installed near:

• Front grille
• Front emblem
• Number plate

This camera captures everything directly ahead of the vehicle.

---

Rear Camera

Usually mounted:

• Above the number plate
• Near the boot handle
• Tailgate area

It provides rear visibility and assists while reversing.

---

Left Camera

Mounted beneath the left side mirror.

This camera captures the left side of the vehicle and contributes to the stitched bird's-eye image.

---

Right Camera

Installed under the right ORVM housing.

It captures the right side view, helping eliminate blind spots.

---

Control Box

This is the brain of the entire system.

Functions include:

• Processing video feeds
• Stitching images
• Display management
• Camera synchronization
• Calibration

---

Wiring Harness

The wiring harness connects:

• Cameras
• Display
• Power supply
• Reverse trigger
• Control box

Premium kits often include vehicle-specific connectors for easier installation.

---

Calibration Mat

One of the most important accessories.

The calibration mat helps align the four cameras accurately, ensuring the software creates a seamless bird's-eye image.

Without proper calibration, the stitched view may appear distorted or misaligned.

---

Display or Android Stereo

Most modern systems connect directly to an Android infotainment system.

Some premium kits also include:

• Dedicated monitor
• DVR support
• Split-screen display
• Touchscreen controls

---

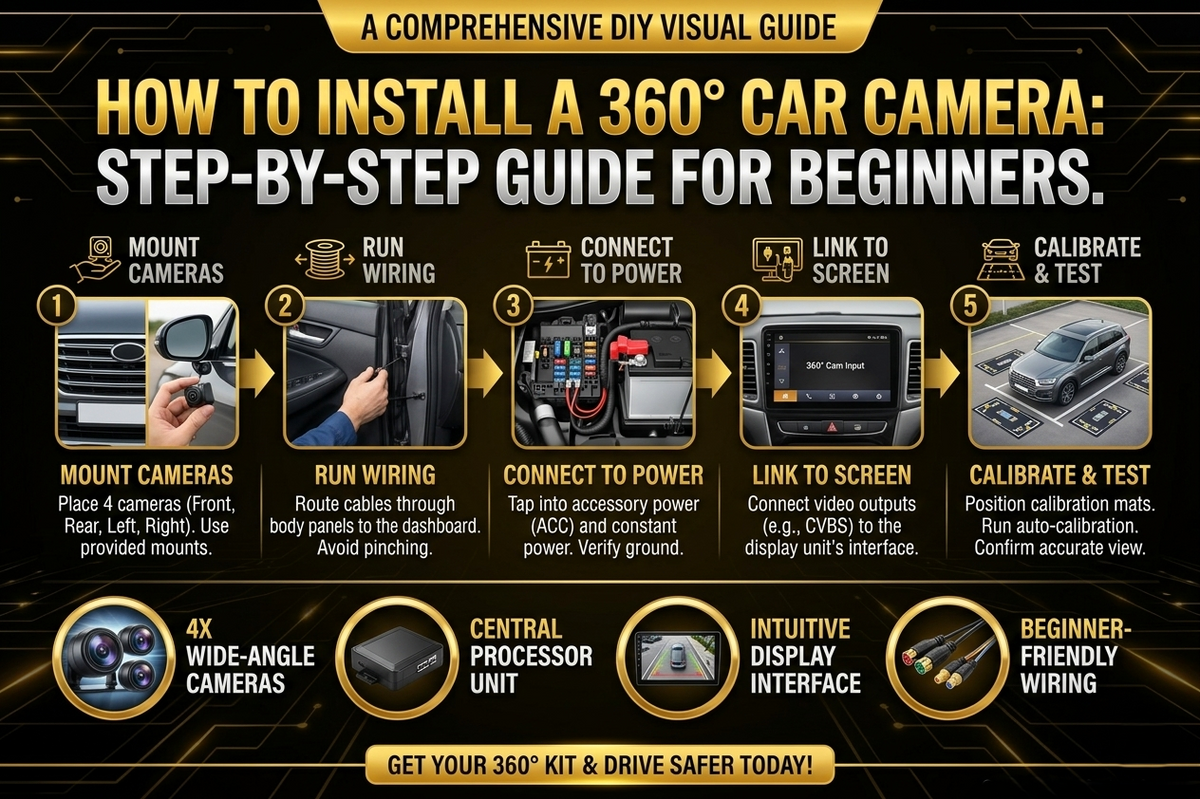

Step-by-Step Installation Guide

Installing a 360 degree car camera requires patience and attention to detail. Follow each step carefully for the best results.

---

Step 1: Disconnect the Battery

Before working on any electrical component:

• Turn off the ignition.
• Remove the key.
• Disconnect the negative battery terminal.
• Wait a few minutes before proceeding.

This simple precaution protects your vehicle's electronics and reduces the risk of accidental short circuits during installation.

---

Step 2: Install the Front Camera

The front camera is responsible for capturing everything directly ahead of the vehicle.

Best Mounting Locations

The most common mounting positions are:

• Front grille
• Number plate bracket
• Manufacturer logo housing (if supported)
• Lower bumper

The camera should be centered and aligned with the vehicle's longitudinal axis.

Installation Tips

• Clean the mounting surface thoroughly.
• Ensure the lens faces straight ahead.
• Avoid placing the camera behind tinted or obstructive surfaces.
• Check that the camera has an unobstructed field of view.

Cable Routing

Route the camera cable:

• Through the engine bay
• Along existing factory wiring
• Through a rubber firewall grommet
• Into the dashboard area

Secure the cable using zip ties and keep it away from hot engine components and moving parts.

---

Step 3: Install the Rear Camera

The rear camera plays a crucial role in parking and reversing.

Recommended Mounting Position

The best locations include:

• Above the number plate
• Near the boot release handle
• Rear bumper center


Ensure the camera is mounted centrally for the most accurate perspective.

Waterproof Installation

Since the rear camera is exposed to rain, dust, and road debris:

• Use waterproof connectors.
• Seal cable entry points with silicone if necessary.
• Ensure the camera housing is securely fastened.

Cable Routing

Route the rear camera cable:

• Through the tailgate
• Inside the factory wiring boot
• Along the roof lining or door sills
• Under interior trim panels
• Towards the dashboard

Avoid pinching the cable when reinstalling trim pieces.

---

Step 4: Install the Side Cameras

The side cameras are typically mounted underneath the left and right side mirrors (ORVMs).

Mirror Housing Installation

Many aftermarket kits include universal camera brackets. Some vehicle-specific kits require drilling a small hole in the mirror housing.

Take care to:

• Remove the mirror cover gently.
• Position the camera symmetrically on both sides.
• Ensure both cameras are mounted at the same height and angle.

Camera Angle

Improper alignment can affect the stitched bird's-eye view.

Aim each camera:

• Slightly downward
• Parallel to the ground
• Without obstruction from the mirror casing

Cable Routing

Route the cables:

• Inside the mirror housing
• Through the door's rubber conduit
• Beneath the dashboard
• Towards the control box

Be cautious not to interfere with window mechanisms or side airbags.

---

Step 5: Route All Camera Wires

Neat cable management is essential for a reliable and professional installation.

Recommended Routing Paths

Use existing factory cable channels wherever possible:

• Under door sill panels
• Beneath carpeting
• Behind dashboard trim
• Along factory wiring harnesses

Secure the Wiring

Fasten all cables using cable ties at regular intervals to prevent movement and reduce the chance of wear from vibration.

Avoid These Areas

Do not route camera cables:

• Near steering components
• Close to pedals
• Around seat rails
• Across sharp metal edges
• In front of airbag deployment zones

Proper wire routing not only improves reliability but also makes future maintenance much easier.

Step 6: Install the Control Box

The control box is the central processing unit of your 360° car camera system. It receives video signals from all four cameras, processes them, stitches them into a seamless bird's-eye view, and sends the output to your display.

Best Mounting Locations

Install the control box in a secure and dry location, such as:

• Under the dashboard

• Behind the glove box

• Beneath the front passenger seat (if recommended by the manufacturer)

• Inside the center console

Avoid placing it:

• Near heater ducts

• Under wet carpets

• Close to moving components

• Inside the engine bay

Secure the Unit Properly

Use screws, heavy-duty double-sided automotive tape, or supplied mounting brackets to prevent vibrations.

Connect the Wiring Harness

Connect:

• Front camera input

• Rear camera input

• Left camera input

• Right camera input

• Power cable

• Ground wire

• Reverse trigger wire

• Video output cable

Ensure every connector clicks firmly into place.

Pro Tip: Label each cable before installation. This saves considerable time during troubleshooting and future maintenance.

---

Step 7: Connect to Android Stereo

Most aftermarket 360° camera systems work perfectly with Android infotainment systems.

RCA Video Connection

Connect the control box's video output to the Android stereo's camera input using the supplied RCA cable.

Power Connection

Connect:

• ACC (Accessory Power)

• Ground

• Reverse trigger (if required)

Follow the wiring diagram supplied with your camera kit.

Configure the Android Head Unit

Open the settings menu and:

• Enable 360 Camera Mode

• Select the correct video format

• Configure parking guidelines

• Enable automatic reverse switching

Some premium Android stereos also support:

• Split-screen viewing

• DVR recording

• Voice commands

• Touch-controlled camera switching

---

Step 8: Power On the System

Reconnect the vehicle battery after verifying all electrical connections.

Initial Startup Checklist

Turn the ignition to ACC mode and verify:

✔ Front camera image

✔ Rear camera image

✔ Left side camera

✔ Right side camera

✔ Automatic camera switching

✔ Android stereo display

Check for:

• Black screen

• Flickering image

• Camera delay

• Distorted display

• Loose connectors

Resolve any issues before proceeding to calibration.

---

Step 9: Calibrate the Cameras

Calibration is the most critical step in 360 camera installation. Even perfectly mounted cameras will not produce an accurate bird's-eye view without proper calibration.

Why Calibration Matters

The software combines four individual camera feeds into one image.

Incorrect calibration can result in:

• Misaligned parking lines

• Distorted surroundings

• Incorrect obstacle positioning

• Gaps between stitched images

Using the Calibration Mat

Most premium camera kits include a calibration cloth or mat.

Place the mat:

• On a flat surface

• Around the vehicle according to the manufacturer's instructions

• Ensure the vehicle is centered

Software Calibration

Open the calibration menu on the Android stereo.

Follow the on-screen instructions to:

• Detect calibration markers

• Align camera angles

• Stitch images

• Generate the bird's-eye view

Fine-Tuning

Inspect:

• Vehicle outline

• Camera overlap

• Side alignment

• Parking guideline accuracy

Repeat calibration if necessary.

Never skip this step—it's essential for accurate parking assistance.

---

Step 10: Final Testing

Before reinstalling all interior panels, perform a comprehensive inspection.

Final Testing Checklist

✔ Front camera clarity

✔ Rear camera clarity

✔ Left camera angle

✔ Right camera angle

✔ Bird's-eye view accuracy

✔ Reverse mode activation

✔ Recording function (if available)

✔ Parking guidelines

✔ Automatic camera switching

✔ Night visibility

Test the vehicle in an open parking area before relying on the system in daily driving.

---

Common Installation Mistakes to Avoid

Even experienced installers can make mistakes that affect performance.

1. Incorrect Camera Angle

A slightly tilted camera can distort the stitched image.

Always use a level mounting position.

---

2. Loose Wiring

Loose connectors may cause:

• Flickering

• Signal loss

• Camera failure

Secure every connector properly.

---

3. Poor Waterproofing

Rear and front cameras are exposed to rain and dust.

Use waterproof connectors and seal cable entry points where necessary.

---

4. Skipping Calibration

Without calibration:

• Parking assistance becomes inaccurate.

• Bird's-eye view appears distorted.

• Object positioning becomes unreliable.

---

5. Incorrect Power Source

Never connect the camera directly to an unstable power source.

Use the recommended ACC power line.

---

6. Poor Cable Management

Messy wiring may:

• Cause rattling noises

• Damage cables

• Interfere with airbags

• Create future electrical issues

Always route wires along factory harnesses.

---

Wiring Diagram Explained

A typical 360 car camera wiring setup consists of several key connections.

Wire	Function
ACC Power	Supplies switched ignition power
Ground	Completes the electrical circuit
Reverse Trigger	Activates reverse camera automatically
RCA Video Cable	Transfers video to display
Camera Inputs	Receives signals from four cameras
Display Output	Sends stitched image to Android stereo

Image Suggestion: Add a labeled wiring diagram showing ACC power, ground, reverse trigger, camera inputs, control box, and Android stereo.

---

How Long Does Installation Take?

The installation time depends on your experience and vehicle type.

Installation Type	Estimated Time
DIY Installation	4–6 Hours
Professional Installation	2–3 Hours

Luxury vehicles with complex interiors may require additional time.

---

DIY vs Professional Installation

DIY Installation	Professional Installation
Lower Cost	Faster Completion
Learn New Skills	Perfect Calibration
Flexible Schedule	Cleaner Wiring
Requires Patience	Warranty Support
Higher Risk of Errors	Professional Finish

If you're comfortable with automotive wiring and trim removal, DIY installation can save money. However, professional installation is recommended for premium vehicles or if you want factory-level finishing.

---

How Much Does 360° Camera Installation Cost in India?

The cost varies depending on the camera kit, features, and installation complexity.

Item	Estimated Price
Basic 360° Camera Kit	₹8,000–₹15,000
Mid-Range Camera Kit	₹15,000–₹25,000
Premium DVR Camera Kit	₹25,000–₹35,000+
Professional Installation	₹2,000–₹6,000
Android Stereo Upgrade	₹8,000–₹30,000

Prices may vary depending on brand, vehicle compatibility, and installation location.

---

Tips for Better Camera Performance

To keep your 360° camera system working efficiently:

• Clean all camera lenses regularly.

• Inspect wiring annually for wear or damage.

• Avoid pressure washing directly on camera lenses.

• Keep connectors dry and free from corrosion.

• Update firmware if your system supports software updates.

• Recalibrate the cameras after replacing mirrors or bumpers.

• Park in covered areas whenever possible to reduce dust accumulation.

Routine maintenance extends the life of your camera system and ensures consistent image quality.

---

Which Cars Can Install a 360° Camera?

Most modern vehicles support aftermarket 360 parking camera installation.

Popular compatible brands include:

• Maruti Suzuki

• Hyundai

• Tata Motors

• Mahindra

• Kia

• Toyota

• Honda

• MG Motor

• Nissan

• Renault

• Volkswagen

• Skoda

Whether you drive a hatchback, sedan, SUV, or MPV, a suitable 360° camera kit is available for most models.

---

Is a 360° Camera Worth Installing?

For many drivers, the answer is yes.

A 360° car camera offers practical benefits that improve safety, convenience, and confidence.

It is particularly useful for:

• Daily city driving

• Tight parking spaces

• Large SUVs

• Family vehicles

• New drivers

• Commercial fleets

• Long-distance travel

Although the initial investment may seem significant, preventing even one parking accident can offset much of the installation cost.

---

Conclusion

Installing a 360° car camera is one of the smartest upgrades you can make to improve vehicle safety and parking confidence. While the installation process involves multiple steps—from mounting cameras and routing wires to connecting the control box and performing accurate calibration—it can be completed successfully with the right tools, patience, and attention to detail.

Proper calibration is just as important as correct installation. A well-calibrated system delivers a seamless bird's-eye view that helps eliminate blind spots, improves parking accuracy, and enhances overall driving awareness.

Whether you're a beginner attempting a DIY installation or choosing professional assistance, investing in a quality 360-degree car camera system provides long-term value through added convenience, improved safety, and protection against minor parking damage.

Looking for a premium 360° car camera? Explore our latest collection of advanced car safety accessories and upgrade your driving experience with reliable, high-performance camera systems designed for Indian roads.

---

Frequently Asked Questions (FAQ)

1. What is a 360° car camera?

A 360° car camera uses four wide-angle cameras mounted around the vehicle to create a stitched bird's-eye view, improving visibility and reducing blind spots.

2. Can I install a 360° car camera myself?

Yes. With basic automotive wiring knowledge, the right tools, and careful calibration, many users can complete a DIY installation.

3. How long does installation take?

A DIY installation generally takes 4–6 hours, while professional installers can usually complete the job in 2–3 hours.

4. Does a 360° camera work with every car?

Most hatchbacks, sedans, SUVs, and MPVs can be fitted with an aftermarket 360° camera system, provided compatible mounting points and display integration are available.

5. Do I need an Android stereo?

Not always. Some camera kits include a dedicated display, but Android stereos typically offer the best integration and user experience.

6. Why is calibration important?

Calibration aligns the four camera feeds accurately to produce a realistic bird's-eye view and ensure reliable parking assistance.

7. Can a 360° camera record video?

Some premium systems include 12MP WiFi DVR Dashcam recording, while others provide only live viewing during driving and parking.

8. How much does a 360° camera cost in India?

Depending on the brand and features, prices generally range from ₹8,000 to ₹35,000 or more, excluding installation.

9. Will installation affect my vehicle warranty?

Using vehicle-specific wiring harnesses and professional installation minimizes the risk, but always review your manufacturer's warranty terms before installation.

10. Is a 360° camera worth it for everyday driving?

Yes. It enhances safety, simplifies parking, reduces blind spots, and is especially valuable in crowded urban environments.
