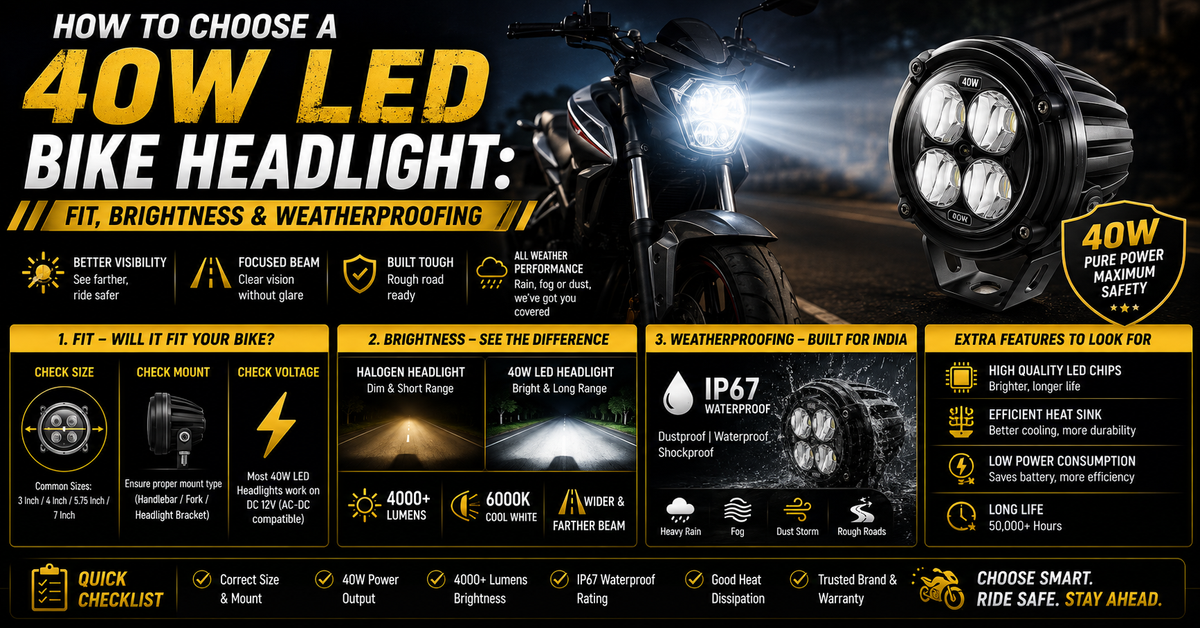

How to Choose a 40W LED Bike Headlight: Fit, Brightness & Weatherproofing

Most motorcycles still roll out of the factory with a stock halogen headlight that struggles the moment the sun goes down. The beam is dim, the spread is narrow, and on unlit roads or during a sudden monsoon downpour, visibility drops fast — for you and for anyone trying to spot you from a distance. For daily commuters, delivery riders, and touring riders alike, that's not just inconvenient, it's a real safety gap.

Upgrading to an LED headlight is one of the simplest ways to close that gap, and a 40W LED bike headlight in particular hits a sweet spot: enough brightness for confident night riding, without the higher power draw and cost of larger touring-focused setups. It's bright enough for everyday riding, efficient enough not to strain your electrical system, and durable enough to handle Indian road and weather conditions.

In this guide, you'll learn what actually makes a 40W LED headlight a good buy — brightness versus wattage, socket compatibility, weatherproofing, key features to look for, and the mistakes most buyers make. We'll also walk through installation and maintenance, so you know exactly what you're getting into before you buy.

Why Upgrade to a 40W LED Bike Headlight?

Improved nighttime visibility. LED chips produce a sharper, more focused beam than halogen filaments, making it easier to spot obstacles, potholes, and turns well before you reach them.

Lower power consumption. LEDs convert more of their input power into usable light and less into wasted heat, which means less load on your bike's electrical system compared to an equivalent halogen bulb.

Longer lifespan. A quality LED headlight typically outlasts a halogen bulb by a wide margin, so you're not replacing it every riding season.

Better beam focus. Well-engineered LED headlights concentrate light into a clean, defined beam rather than scattering it in every direction, improving both your visibility and how well oncoming riders can see you without being blinded.

Faster illumination. LEDs reach full brightness instantly, with no warm-up lag — useful the moment you flick on your headlight in low light.

Modern appearance. Beyond function, a clean white LED beam gives an older motorcycle a noticeably updated look.

Reduced maintenance. With no filament to burn out and better heat management, LED headlights generally need less frequent attention than halogen bulbs.

Understanding Brightness: Lumens vs Wattage

What Does 40W Mean?

Wattage refers to how much power the headlight draws, not how bright it actually is. A 40W LED headlight typically produces significantly more usable light than a 40W halogen bulb, because LEDs are far more efficient at converting electricity into light rather than heat.

How Many Lumens Are Enough?

Lumens measure actual light output, and this is the number that matters more for real-world visibility. For most riders, a 40W LED headlight lands in a lumen range that comfortably covers everyday commuting and mixed city-highway riding, without the excessive output (and glare risk) of headlights built for long-distance touring.

Why Beam Pattern Matters More Than Wattage

Two headlights with identical wattage and lumen ratings can perform very differently depending on how well the beam is shaped. A poorly focused beam scatters light upward and sideways, creating glare for oncoming traffic while leaving less usable light actually hitting the road. A well-designed beam pattern concentrates output where you need it — directly ahead and slightly down — which matters more for real-world safety than raw brightness numbers.

Wattage	Typical Lumens	Best For
20W	City commuting	Short-distance riding
40W	Everyday riding	Balanced performance
60W+	Highways	Long-distance touring

Choosing the Right Bulb Socket

Before buying any LED headlight, confirm the exact bulb socket your motorcycle uses. Common types include:

H4 — one of the most widely used sockets across commuter and standard motorcycles.
H7 — common on several mid-size and premium bikes.
HS1 — frequently found on scooters and smaller-displacement bikes.
BA20D — another common scooter and motorcycle fitment.
Others — some models use less common or brand-specific sockets.

Always check your owner's manual or the markings on your existing bulb before ordering. Fitting the wrong socket type means the bulb won't seat properly, and forcing it can damage the housing or wiring.

Why IP68 Weatherproofing Matters

Unlike a car headlight tucked behind a sealed housing, a motorcycle headlight is far more exposed to the elements — and that makes weatherproofing non-negotiable.

Riding in rain. An IP68-rated headlight is built to handle sustained water exposure without water seeping into the housing or connectors.

Dust protection. The same IP68 rating also protects against fine dust and grit, which is a constant issue on unpaved roads or during dry, dusty months.

Mud and water resistance. For riders who occasionally deal with splashback or off-road conditions, a properly sealed housing prevents mud and moisture from reaching the internal electronics.

Monsoon reliability. For much of India, monsoon riding is unavoidable. A headlight without strong water resistance is far more likely to flicker, short out, or fail during heavy rain.

Long-term durability. Moisture ingress is one of the most common causes of premature LED failure. A genuine IP68 rating significantly reduces that risk over the life of the product.

Universal Fit vs Vehicle-Specific Headlights

Plug-and-play installation. Universal-fit LED headlights are designed to work across a wide range of bulb-socket types without needing custom wiring, making them a straightforward upgrade for most riders.

Fitment considerations. While "universal fit" covers the socket and electrical connection, always double-check the physical housing size and beam alignment for your specific bike model, since headlight assemblies vary in shape and depth.

Popular bike models. Universal 40W LED headlights are commonly used across commuter motorcycles, standard street bikes, and scooters where the socket type matches, though sport bikes and touring models with unique housings may need closer fitment checks.

Compatibility checks. Before buying, confirm the socket type, housing dimensions, and voltage rating all match your bike to avoid returns or fitment issues.

Key Features to Look For

Efficient Cooling System

Heat is the main enemy of LED longevity. A headlight with a proper aluminium heat sink — and ideally an integrated cooling fan — maintains brightness and lifespan far better than one that relies on passive cooling alone.

High-Quality LED Chips

The LED chip itself determines brightness consistency, colour accuracy, and how well the light holds up over thousands of hours of use. Reputable chip brands generally offer more consistent output than unbranded, budget alternatives.

Stable Driver

The driver regulates power to the LED chip. A poorly built driver can cause flickering, inconsistent brightness, or premature chip failure, especially on bikes with fluctuating electrical output.

Compact Design

A well-engineered 40W LED headlight should fit within the stock housing without requiring major modifications, keeping installation simple.

Instant Start

Look for headlights that reach full brightness immediately on power-up, with no flicker or delay — important for both convenience and safety.

Long Lifespan

Check the manufacturer's rated lifespan; a well-built 40W LED headlight should be rated for thousands of hours of continuous use.

Energy Efficiency

A well-designed 40W LED headlight should draw noticeably less strain on your electrical system than an equivalent-output halogen bulb, while still delivering strong brightness.

Vibration Resistance

Motorcycles experience constant vibration from the engine and road surface. Look for headlights built with secure internal mounting and connectors rated to withstand this kind of continuous vibration.

Common Buying Mistakes

Buying only based on wattage, without checking actual lumen output or beam quality.
Ignoring beam pattern, resulting in glare for other riders and poor road illumination for yourself.
Choosing the wrong socket, leading to fitment issues or the need for a return.
Overlooking waterproof ratings, which becomes a costly mistake the first time you ride through heavy rain.
Purchasing low-quality products without warranty, leaving no protection if the driver or chip fails early.

Installation Guide

Turn off the motorcycle and let the headlight housing cool down if it's been running.
Remove the stock bulb by carefully disconnecting the wiring harness and twisting the old bulb out of its socket.
Install the LED bulb, making sure it seats fully and locks into the same position as the original.
Connect the driver (if it's a separate unit from the bulb), routing wiring away from hot or moving engine parts.
Test the headlight, checking that it powers on correctly and reaches full brightness without flickering.
Adjust beam alignment, checking the beam against a wall or garage door and adjusting until it's level and properly focused.

If you're unsure about handling the wiring or beam alignment, having a mechanic install the headlight is a safe way to avoid electrical issues or misalignment.

Maintenance Tips

Keep the lens clean. Road grime, dust, and water spots reduce light output, so wipe the lens down regularly.
Inspect wiring regularly, especially the connector and driver wiring, checking for corrosion or looseness after monsoon rides.
Avoid high-pressure water directly on connectors when washing your bike, even with an IP68-rated headlight, to protect long-term seal integrity.
Check beam alignment periodically, since vibration and minor impacts can shift the beam position over time.
Ensure cooling vents remain unobstructed by any aftermarket covers or accessories that might trap heat around the housing.

Why Buy from Audio Wheels?

Choosing where you buy matters just as much as choosing the right spec sheet. Audio Wheels' bike LED headlight range is built around:

Premium-quality LED technology for consistent, reliable brightness.
IP68-rated products engineered to handle India's rain, dust, and rough road conditions.
Plug-and-play options for straightforward installation across a wide range of motorcycles.
Vehicle compatibility support to help you confirm the right socket and fitment before you buy.
Warranty coverage that protects you against manufacturing defects or premature failure.
Fast shipping across India, so you're not stuck waiting through peak monsoon season.
Customer assistance for fitment questions, troubleshooting, and installation guidance.

Explore the Bike LED Headlight Collection to find the right 40W option for your motorcycle, along with related product pages, installation guides, and comparison articles to help you make an informed choice.

Conclusion

A 40W LED bike headlight offers a practical, well-balanced upgrade for most riders — brighter and more efficient than stock halogen, without the higher draw of larger touring-focused setups. The factors that actually determine performance are fit, beam quality, real-world brightness, and weather resistance, not the wattage number alone.

Before you buy, confirm your bulb socket, check for a genuine IP68 rating, and look past marketing lumens to focus on beam pattern and build quality. A headlight backed by a solid warranty and responsive support will save you money and frustration down the road.

Ready to upgrade your ride for safer night riding? Browse the Audio Wheels bike LED headlight collection and find the right 40W fit for your motorcycle.

Frequently Asked Questions

1. Is a 40W LED bike headlight bright enough?
For most everyday and commuter riding, yes — a 40W LED headlight offers a strong balance of brightness and efficiency, though long-distance touring riders on unlit highways may prefer a higher-output option.

2. How many lumens should a motorcycle LED headlight have?
It depends on your riding needs, but a 40W LED headlight generally delivers enough lumens for confident city and mixed-road visibility without excessive glare.

3. What does IP68 mean?
IP68 is a rating indicating strong protection against dust and prolonged water exposure, making the headlight suitable for rain and monsoon riding conditions.

4. Can I install a 40W LED headlight myself?
Many are designed for plug-and-play installation, but if you're not confident with wiring or beam alignment, it's worth having a mechanic install it for you.

5. Which socket type does my bike use?
Check your owner's manual or the markings on your current bulb — common types include H4, H7, HS1, and BA20D.

6. Are LED bike headlights legal in India?
Rules around aftermarket lighting modifications can vary, so it's worth checking current local regulations and ensuring the headlight meets beam pattern and brightness standards.

7. How long do LED bike headlights last?
Quality LED headlights are generally rated for thousands of hours of use, significantly longer than a typical halogen bulb, though actual lifespan depends on build quality and cooling.

8. Do LED headlights drain the battery?
No — LED headlights typically draw less power than equivalent halogen bulbs, putting less strain on your bike's battery and electrical system.

9. Can I ride in heavy rain with an IP68 headlight?
Yes, an IP68-rated headlight is designed to handle sustained water exposure, making it suitable for monsoon and heavy-rain riding.

10. What is the difference between 40W and 60W LED headlights?
A 40W headlight is generally suited for everyday and city riding, while 60W+ options are designed for longer throw distance on highways and touring routes.

11. Are universal-fit LED headlights suitable for all motorcycles?
Universal-fit headlights cover a wide range of socket types, but it's important to confirm housing size and beam alignment for your specific model before buying.

12. How do I improve my bike's nighttime visibility?
Upgrading to a quality LED headlight with a well-designed beam pattern, along with regular lens cleaning and correct alignment, significantly improves nighttime visibility.

13. Do LED headlights require additional wiring?
Most plug-and-play LED headlights use the existing wiring harness, though some setups may require a separate driver connection depending on the design.

14. How often should I adjust headlight alignment?
It's good practice to check alignment every few months, or sooner if you've had a minor impact or noticed a shift in the beam.
